ZonEx IND226X ATEX Platform Scale in Mild Steel PDF Print E-mail

Heavy Duty Platform Scale Mild Steel - MT IND226x Atex Zones 1, 21, 2 and 22
Capacity 3000kg x 0.5kg graduation with a high Accuracy Scale 0.1% of the applied load. The Euroscales heavy duty platform scales as designed with rugged continuous use in mind for commercial and industrial applications.

The MT IND226x is designed for simple weighing applications in hazardous areas, it has three available power sources: an external battery, 230v Power supply unit and 120v Power supply unit.

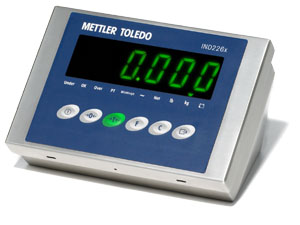

Platform Scale in Mild SteelZonEx Atex basic display



Performance



ResolutionMax 30,000 divisions, weighing ranges : single range
Keypad Hardcoated polyester overlay, 6 keys, tactile-feel

Housing

Full stainless steel enclosure 220mm (w) x 148mm (d) x 132mm (h)

Protection

IP66 dust and water ingress rating

Hazardous Rating

ATEX: II 2 G EEx ib IIC T4 (Gas), II 2 D Ex tD A21 IP66 T60°C (Dust)
Digital



Display7-segmented LED, 6 Digit, 30mm high
Power Input
External BatteryStainless steel housing, NIMH cells 8Ah, includes 3m cable
230 Mains Supply230 VAC Power supply unit
120 Mains supply120 VAC Power supply unit
Platform
LoadcellsIP67 sealed stainless steel load cells - Flintec SLB 1000 C3 / R60 approved
Standard finishSmooth steel finish / high quality paint finish in blue grey RAL 7031
ConstructionHeavy duty folded mild steel construction with durbar contact surface
SizeStandard Squares 800mm sq, 1000mm sq, 1250mm sq and 1500mm sq. All have a height of 85mm
CablesStandard cables 2.5M length with Amphenol plugs
Warranty5 years on loadcells
FeetWeights and Measures certified loadcell mounts, passive zinc plated
